Q-BOX-M(TOP2550)

Model : Q-BOX-M(TOP2550)

Description :
◆IntegratedIntel 4th Mobile Haswell-U single chipset CPU；
◆ Onboard 2GB/4GB DDR3L Memory；
◆ Provide 1*VGA,1*HDMI 1.4（Support 4K display output）;
◆4*RS-232, 2*RS422/485（optional6*RS232）；
◆ Support power-on automatic startup function, jumper selection；
◆ Single input DC power supplyDC12V ( wide voltage power supply support 9-36V input Optional);
◆ Size:235*200*56.5mm；

Product recommendation

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆IntegratedIntel 4^th Mobile Haswell-U single chipset CPU；

◆ Onboard 2GB/4GB DDR3L Memory；

◆ Provide 1*VGA,1*HDMI 1.4（Support 4K display output）

◆4*RS-232, 2*RS422/485（optional6*RS232）；

◆ Support power-on automatic startup function, jumper selection；

◆ Single input DC power supplyDC12V ( wide voltage power supply support 9-36V input Optional)

◆ Size:235*200*56.5mm；

SPECIFICATION

Model No.	Q-BOX-M

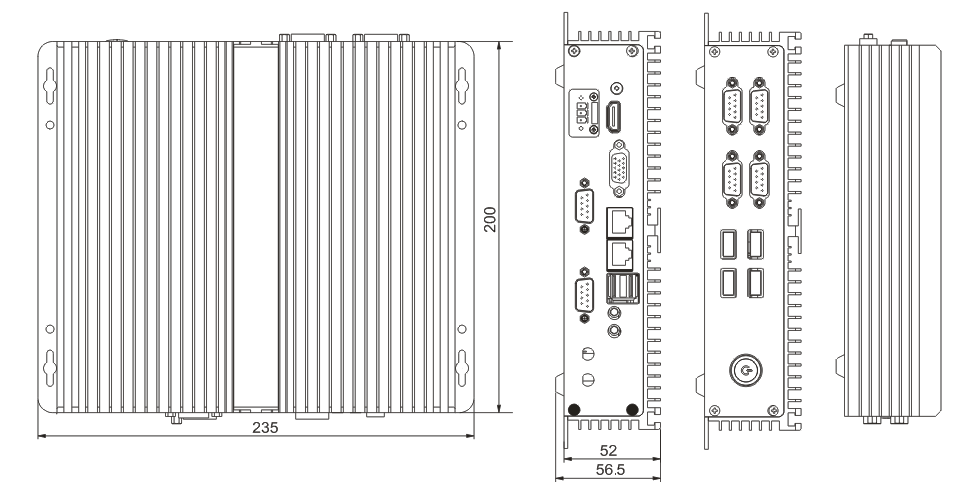

Measure	23520056.5mm
Processor	Integrated Intel Intel 4^th?Mobile Haswell-U single chipset ?CPU；
Chip	Haswell-Usingle chipset ?CPU
RAM	Onboard 2GB/4GB DDR3LRAM, Max. Expanded 12Gb
Expansion slot	1 DDR3 SODIMM 204 Socket
Network	Onboard 2*Gigabit Ethernet
Audio	Onboard ?HDA ALC662
Storage	1MINISATA Support SSD; 2SATA 1*SATA_HDD
Chassis Color	Black

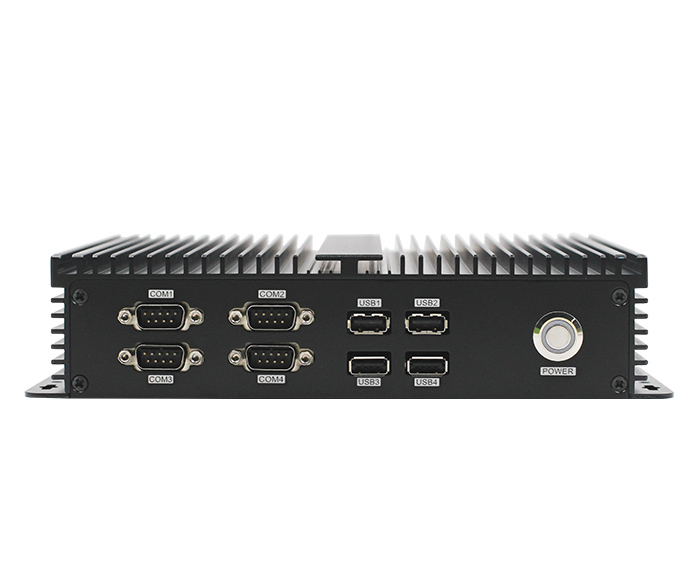

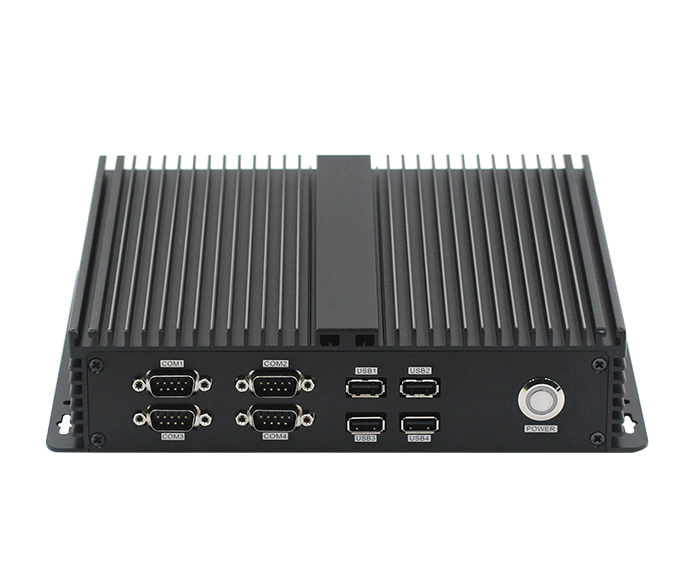

Front panel I/O	4COM（COM1and COM2 RS422/RS485 or RS232 Optional）4USB 1*POW-ON/OFF（switch）indicator?light

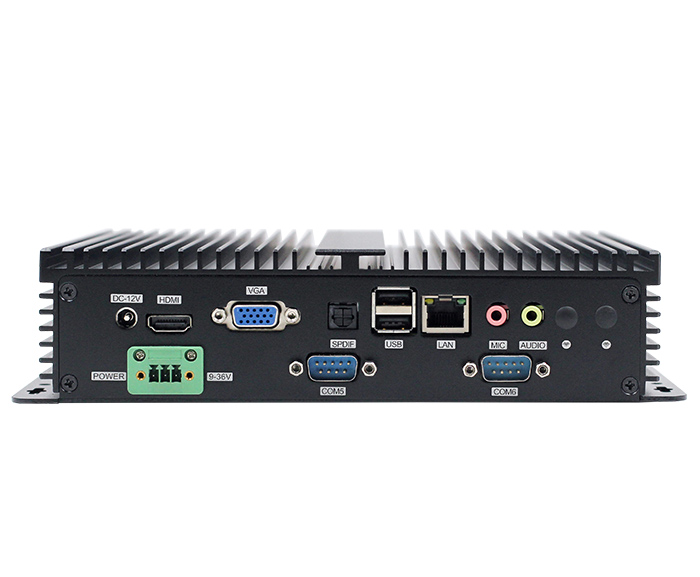

Back panel I/O	1VGA 1HDMI 2USB3.0 ?2LAN 1line out 1mic in 2COM(RS232) 1DC 11Phoenix Terminals 3PIN power interface
Standard Accessories	112V 5Apower adapter 1WIFI antenna （optional））
Package

?Size

?

Order Information

Model No

SPECIFICATION

Processor

?

TOP2550

Integrated?Intel? AtomD2550/N2600/D2700/N2800 processor

Integrated?Intel? Atom D2550+NM10 chipset

?

D2550 32nm/1.86Ghz/10W

N2600 32nm/1.6Ghz/4W

D2700 32nm/2.13Ghz/10W

N2800 32nm/1.86Ghz/6.5W
