National service hotline:18126408529 Aibaba.com CN EN

Q-BOX-W1

Model : Q-BOX-W1

Description :
◆ With Intel Atom D2550+NM10 high-speed chipset support Intel Cedar Trail-D Atom dual core D2550 Processor (32nm,1.86GHz,1MB L2 cache);
◆ Onboard 2GB/4GB DDR3L RamP;
◆ Integrated IntelHD Graphics Core graphics;
◆ Providing1*VGA,1*HDMI;
◆ 2*RS232 2*RS485/422;
◆ Support power-on automatic boot function, jumper selection;
◆ Single input DC power supply, DC12V;
◆ Size: 224.6*200*57.5mm;

Product recommendation

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ With Intel Atom D2550+NM10 high-speed chipset support Intel Cedar Trail-D Atom dual core D2550 Processor (32nm,1.86GHz,1MB L2 cache)

◆ Onboard 2GB/4GB DDR3L Ram

◆ Integrated IntelHD Graphics Core graphics

◆ Providing1*VGA,1*HDMI,

◆ 2*RS232 2*RS485/422

◆ Support power-on automatic boot function, jumper selection

◆ Single input DC power supply, DC12V

◆ Size: 224.6*200*57.5mm

Specification

Model	Q-BOX-W1
size	224.620057.5mm
Processor	Based on Intel Atom D2550+NM10?high speed chipset, with Intel Cedar Trail-D?Atom?dual core D2550 Processor?(32nm,1.86GHz,1MBL2 Cache)
Chipset	NM10?high speed chipset
Operate system	Windows XP/windows7/Linux/Android
Memory	Onboard 2GB/4GB DDR3 memory
Lan	Onboard 1*Gigabit lan Port
Audio	Onboard ?HDA ALC662
storage	1MINISATA support SSD; 1SATA3.0
Color	Black

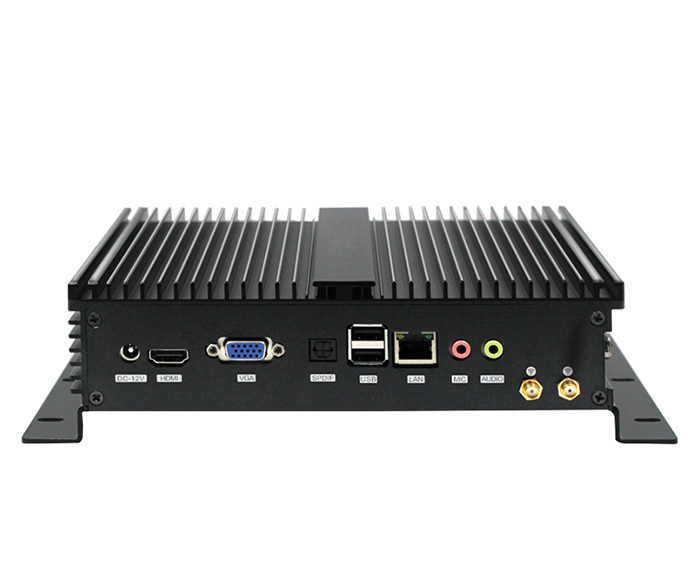

Front panel Port	1HDMI 1VGA 2USB2.0 1LAN 1LINE OUT 1MIC IN 2WIFI?antenna ?1SPDIF?1*DC

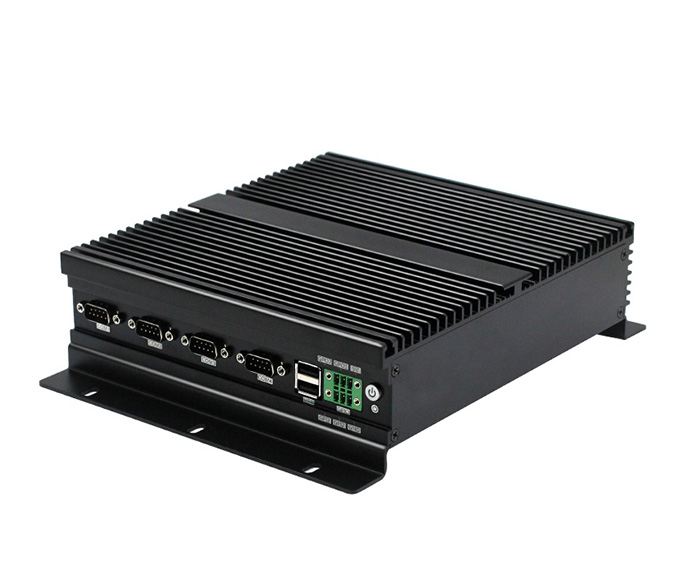

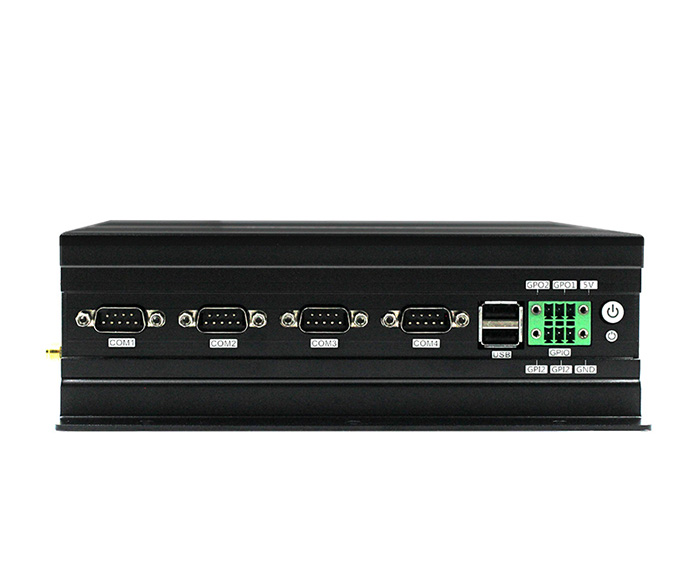

Side panel interface	2COM(RS232) 2COM(RS422/RS485) 2USB2.0 1GPIO 1*Switch button with indicator light
package	Box size :27.52713cm ?Gross weight 1.35KG ?net weight 1.05KG

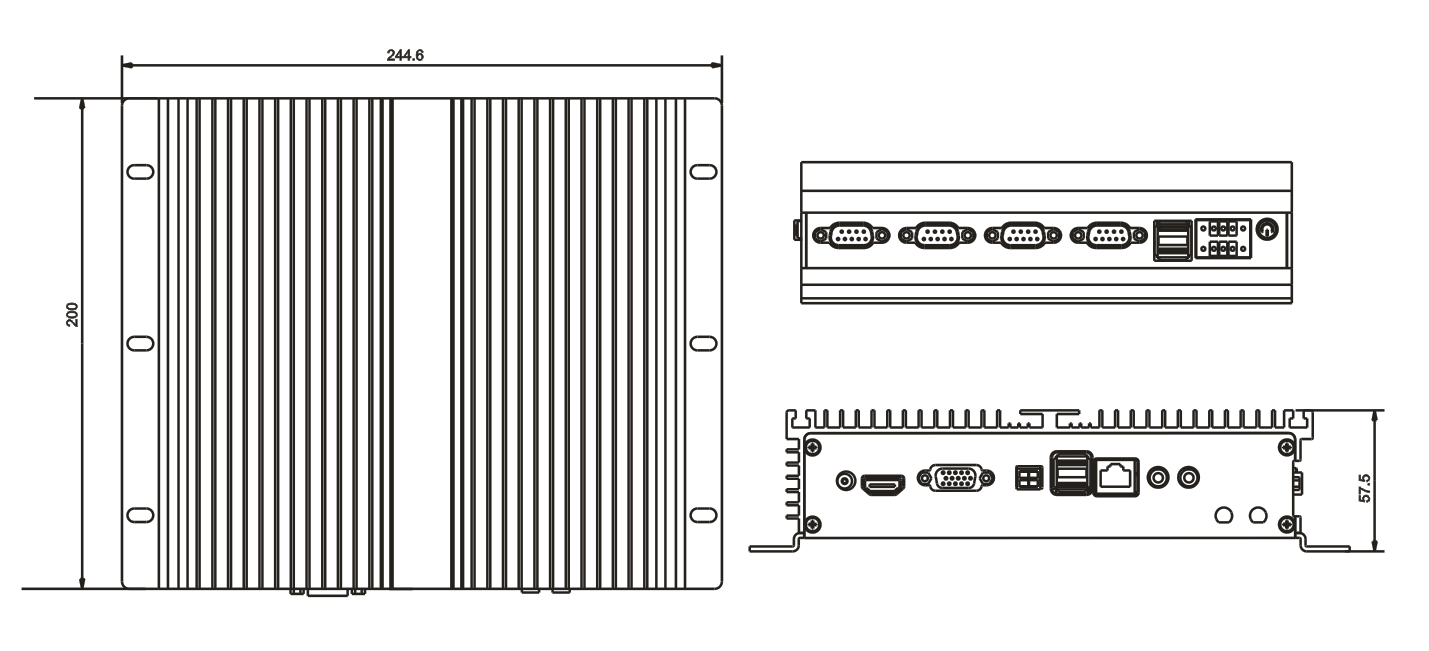

?Size

?

order information

Model

description

CPU?optional

TOP2550

?

Based on Intel Atom D2550+NM10?high speed chipset, with Intel ??

?Cedar Trail-D?Atom?dual core D2550 Processor?(32nm,1.86GHz,1MBL2 Cache) ???????????????????????????????????????????????Onboard 2GB/4GB DDR3L Ram

?

D2550
