FA-1106S

Model : FA-1106S

Description :
◆ Support LGA1151 socket Intel 6th and 7th i3-i5-i7/Pentium/Celeron CPU；
◆ H110/H170/Z170 high-speed chipset ;
◆ 2*DDR4 Ram socket，support DDR4 2133/2400Mhz supportdual channel ;
◆ 1*VGA Port ;
◆ 6*Intel Lan Port I211 or I210 chipset for optional，(（LAN1 and LAN2，LAN3 and LAN4support 2*group Bypass function）;
◆ 4*SFP（ chipset :I350）;
◆ 1*RJ45 Port RS232 Com;
◆ ATX Power supply；
◆ size :486*411*43.9 mm；

Product recommendation

GN41NA

OPS908S

Contact us

18126408529 sales18@piesia.com B zone, 2 floor, N building, Xin Wei third industrial zone, Da Lang Street, Longhua New District, Shenzhen

◆ Support LGA1151 socket Intel 6^th and 7^th

i3-i5-i7/Pentium/Celeron CPU；

◆ H110/H170/Z170 high-speed chipset

◆ 2*DDR4 Ram socket，support DDR4 2133/2400Mhz supportdual channel

◆ 1*VGA Port

◆ 6*Intel Lan Port I211 or I210 chipset for optional，(（LAN1 and LAN2，LAN3 and LAN4support 2*group Bypass function）

◆ 4*SFP（ chipset :I350）

◆ 1*RJ45 Port RS232 Com

◆ ATX Power supply；

◆ size :486*411*43.9 mm；

Specification

Model	FA-1106S
size	48641143.9mm
Processor	Support LGA1151 socket Intel 6th and 7th i3-i5-i7/Pentium/Celeron CPU
Chipset	H110/H170/Z170 high-speed chipset
Memory	2*DDR4 Ram socket，support DDR4 2133/2400Mhz support dual channel ；
Lan	6Intel Lan Port I211 or I210 chipset for optional (（LAN1 and LAN2，LAN3 and LAN4support 2group Bypass function） 4*I350 SFP Ports
Storage socket	1MINISATA 1SATA 1*CF/Cfast
Color	Black
System	6^th?CPU supports Windows7 Windows10 LINUX ?7^th?CPU supports Windows10 LINUX

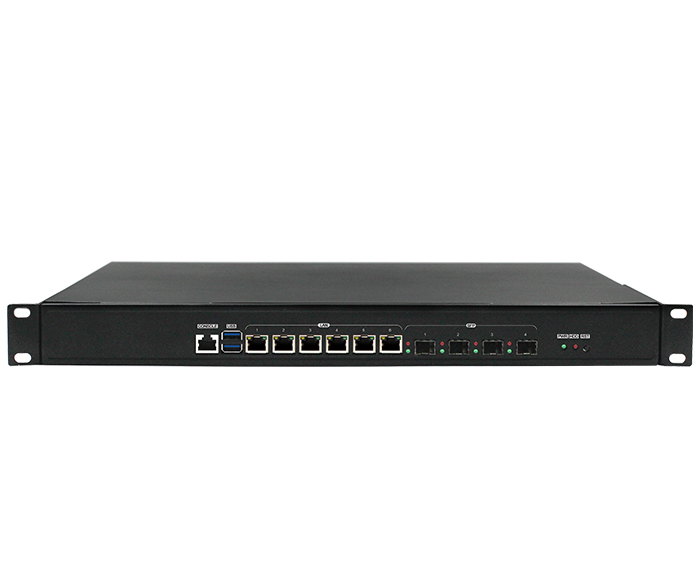

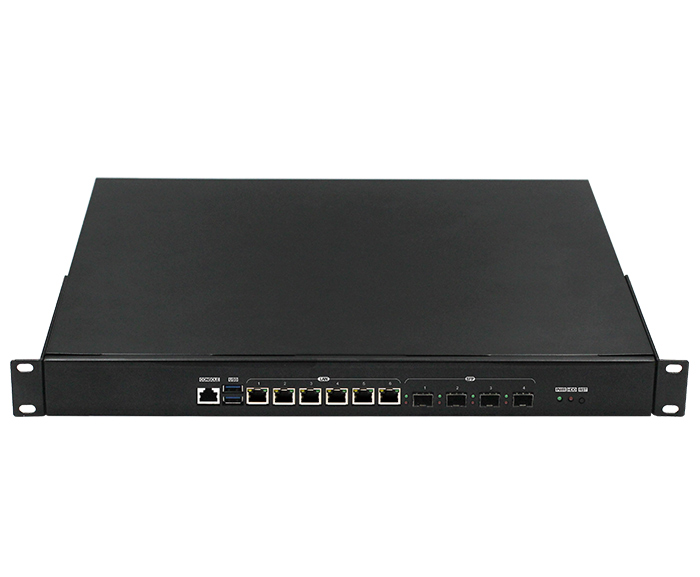

Front panel interface	6Intel Lan Port I211 or I210 chipset for optional 1RJ45 RS232 1POWER_LED 1HDD_LED 1Reset Restart button 2USB 3.0 1Switch button 4I350 SFP Ports

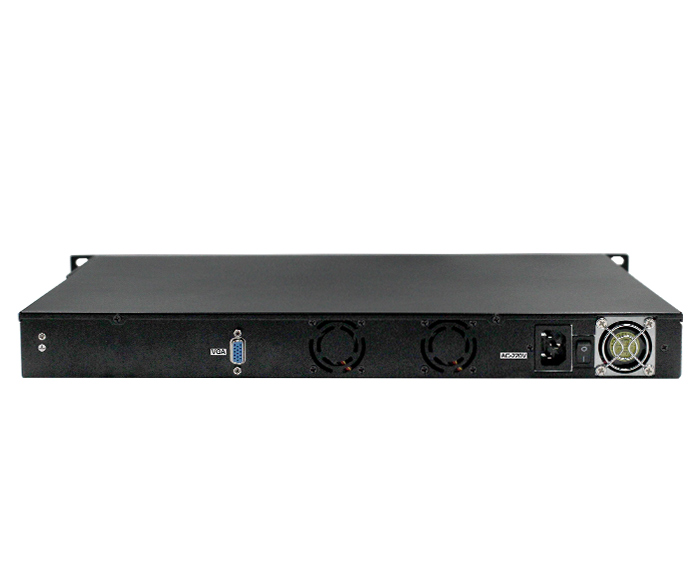

Back panel interface	1VGA interface 1AC power connector 2WIFI antenna interface 1AC power switch

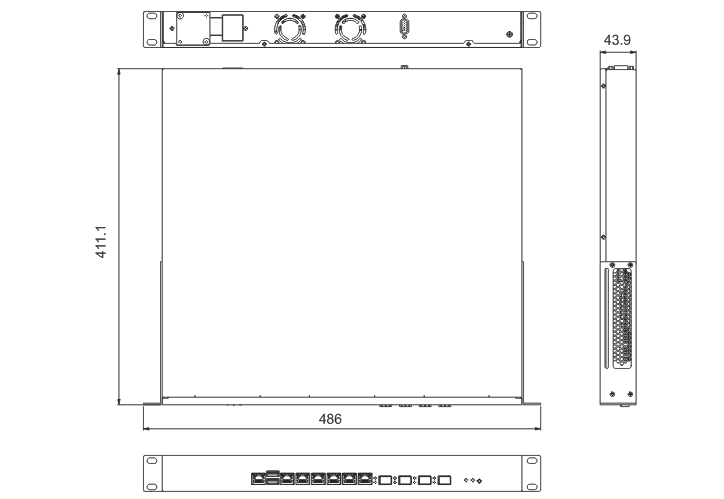

?Size

?

Order information

Suitable Motherboard Model

description

CPU optional

?

SK110C6L

Main chipset：Intel H110/H170/Z170

CPU?socket：LGA 1151

Ram type：2*DDR4?Ram socket

?

??

CPU?type ：

Intel6^th?and 7^th?i3-i5-i7/Pentium/Celeron CPU
